Nitrite in Closed Cooling System

The Nitrite Reserves Kit, K-7004B Nitrite Kit able to read Nitrite levels from 0-300 ppm as N. Self-Filling with internal dilution procedure for quick and onsite testing

Features

Capable testing concentrated nitrite sample of closed cooling system
Easy to run the tests with self filling vacuum based procedure
Testing is easily conducted at the site with quicker time
Reagents comes in sealed glass, with minimum spillage
Comparator Ranges: 0,40,60,80,120,180,220,260, 300 ppm

Overview

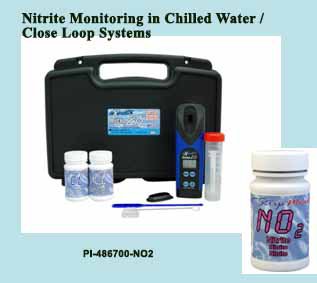

Product Images
Downloads
Enquiry Product

Product Description

Nitrite as Corrosion Inhibition

Nitrite is widely used in closed cooling water as corrosion inhibitor. Reserves of nitrite concentrations be mantained in the range of 600-1200 ppm as NO₂^- . This will sufficiently provide protection of iron and steel from corrosion. And the suitable pH must be mainatined above 7.

The Kit, K-7004B measures levels of Nitrite in water from 0-300 ppm as N. The kit, K-7004B uses the Azo Dye Formation Method, in which Nitrite diazotizes with a primary aromatic amine in an acidic solution to produce a highly colored azo dye. The intensity of the color is directly proportional to the concentration of nitrite in the sample. Nitrate will not interfere. Results are expressed as ppm (mg/L) NO2-N.

Chemistry: In an acidic solution, nitrite diazotizes sulfanilic acid (a primary aromatic amine), then couples with 4,5-dihydroxynaphthalene-2,7-disulfonic acid to produce a highly colored azo dye. The resulting pinkorange color is proportional to the nitrite concentration in the sample. Results are expressed as ppm (mg/L) NO2-N. To convert results from ppm NO2-N to ppm NO2, multiply by 3.3.

Packing Size:

Kit comes with 30 tests
